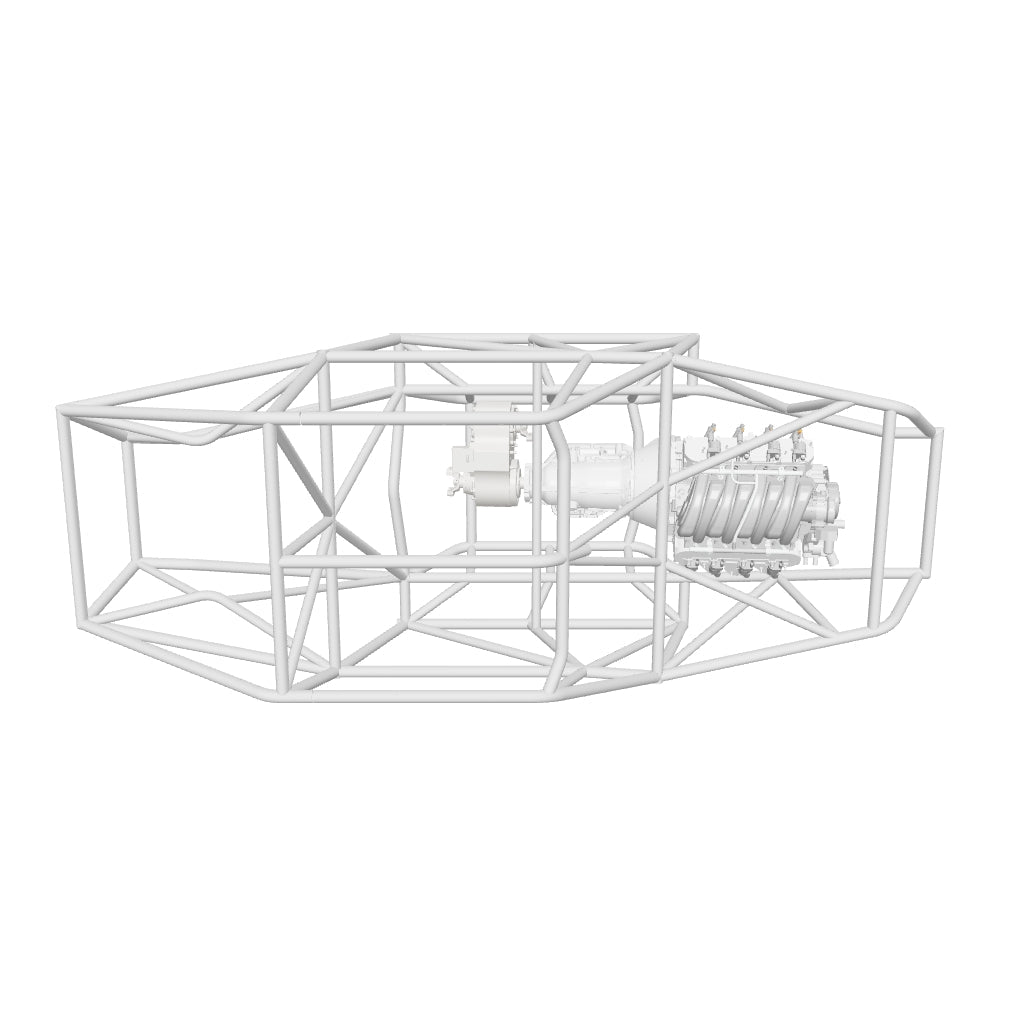

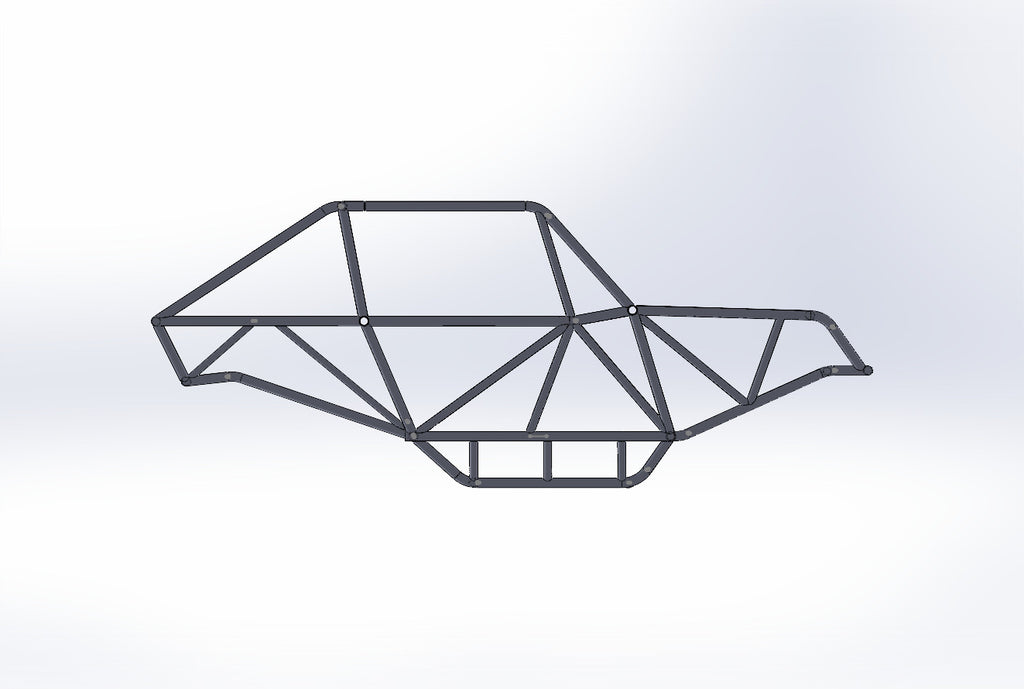

Pinata DIY Chassis Kit

Pinata Chassis arrives un-assembled on a pallet. Ready to assemble. Parts are labels and comes with an instruction manual and CAD Video deminstrating the assembly order. With the option to have it Tacked together or fully mig additional cost. When you choose to bundle the chassis. You will qualify for a 10% discount on the components ONLY.

Designed around

• Designed to fit 1 ton Axles
• LS Motor or Smaller Motor

• Atlas
• 14"-16" Front Shocks
• 16" Rear Shocks

Features

• 2 Seat Chassis
• DOM Tube Chassis 50" Wide
• Subframe DOM 1.75" x .188
• Main Chassis DOM 1.75" x .120
• Interior DOM both 1.5" x .095 and 1.25" x .095
• All chassis are laser cut and bent.

Additional Components:

• Chassis Side Upper Link Mounts
• Chassis Lower Link Mounts
• Standard Length -  2" 7075 Solid Round Aluminum Lower Links
• Standard Length -  1.75" 7075 Solid Round Aluminum Upper Links
• Chassis Side Front Shock Mounts (When using 16" shocks)
• Chassis Side Rear Shock Mounts (When using 16" Shocks)
• Fuel Cell
• Rear Cargo Rack
• Passenger Seat Delete Storage Tray
• Aluminum Roof
• Small Aluminum Hood
• Side Panels
• Floors with Center Console
• LS Motor Mounts
• Bent Fab Atlas Adapter to TH400


**Prior to ordering:

Please contact Paul@BentFabAZ.com to confirm current lead times, typically  4-6 weeks however this may vay based on selected options and additional components. At this time we will also go over options for freight, pick up, or local delivery.
